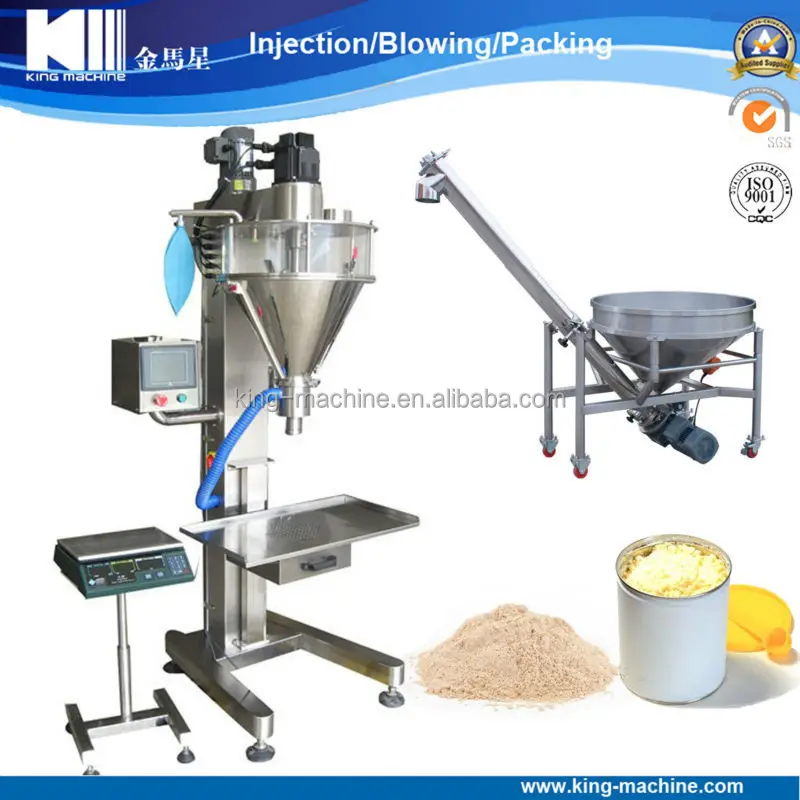

Semi Automatic Powder Filling Machine

Semi Automatic Powder Filling Machine
  • Seller Zhangjiagang King Machine Co., Ltd.
  • Min. Order 1 Set/Sets
  • FOB Price US $3500-5800 /Set

Item Details

Port: shanghai
Supply Ability: 30 Set/Sets per Month
Payment Terms: L/C,D/A,D/P,T/T

Product Description

Semiautomatic Powder Filling Machine

Description :

The machine is mainly by combination of filling equipments , transparent and open style’s hopper , column and electronic control system.( The sealing may change by customers )

The whole body is made of stainless steel ; The Chinese/English is displayed in touch screen. HMI using PLC and touch screen ; It designed in terms of National “QS” and “GMP” standards ; The servo motor drive control the filling system , The geared motor made from Taiwan control the mixing system to keep the stable performance and high packaging accuracy ; The combinations of whole sealing machine , stainless steel’s body and PMMA material box made the clean easy ; The height adjustable working table ; Ten kinds of packaging parameters can be store ; For the dusty material’s packaging , we can add a dust collect for cleaning ; The machine is suitable for many kinds of size and powdery material’s packaging through changing the auger attachment .

Technical parameters :

Model

GFE-50C

Metering Mode

Auger filling , Electronic-sensing weighing feedback

Package Weight

10-5000g changeable( by changing auger attachment)

Package Accuracy

Package Weight Speed(Min) Accuracy

1000g 25bags/min With error 5g

2500g 20bags/min With error 10g

5000g 15bags/min With error 15g

Packaging Speed

20-45bags/min

Power Supply

380V 50Hz/60Hz( Customizable 220V’s motor)

Hopper Volume

50L(60L for oversized hopper)

Total Power

1.3Kw ; 1.8Kw for optional

Overall Dimensions

1200×800×2150mm
