Measurement Analysis Instruments for metal steel Rebar

(4 Columns + 2 leading screws, 300kN-2000kN)

Product Description

1. Introduction

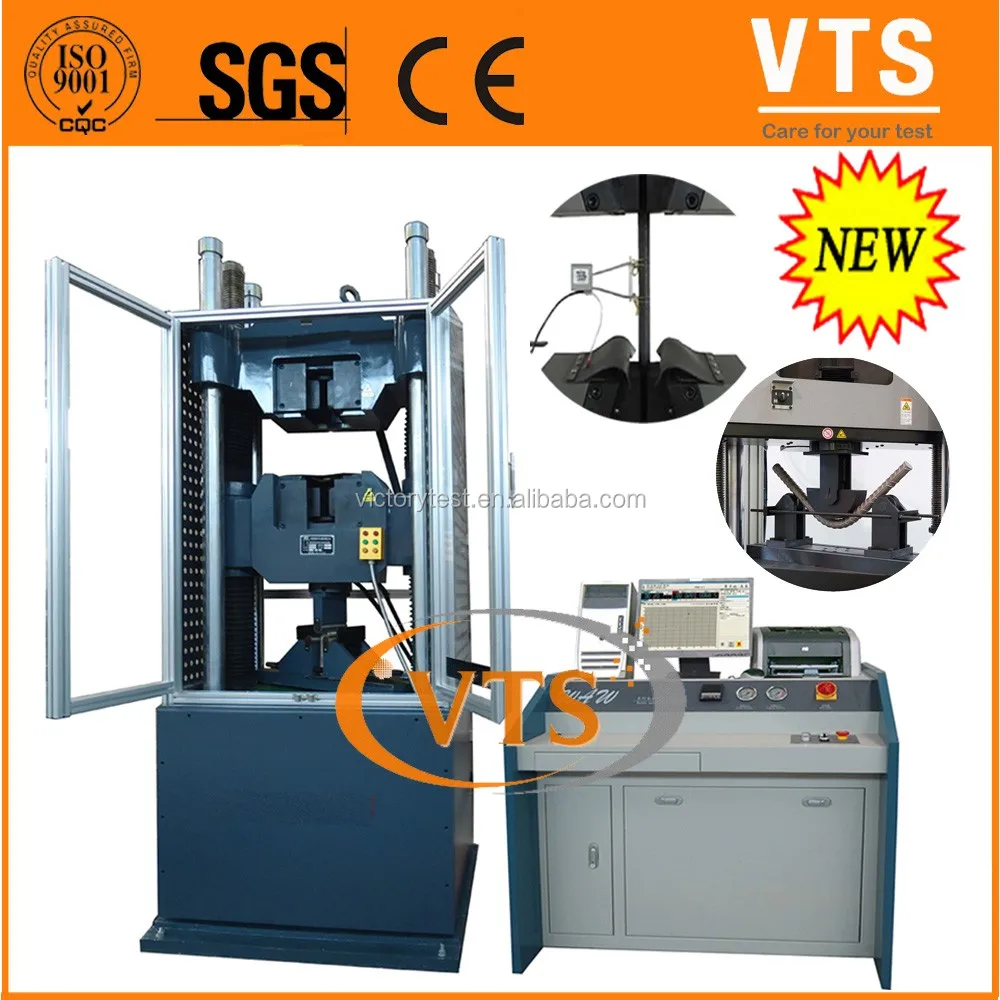

This WAW-1000E Rebar Computerized Electro-hydraulic Servo Universal Testing Machine is widely used for tensile and bending test for steel rebar, carbon steel bar, deformed steel bar.

It adopts 4 columns with chrome plated and 2 leading screws, high stiffness, more stable.

Press button operated hydraulic tensile grips, easy operate.

It's computer controlled servo hydraulic type, the piston goes up and high precision load cell directly measuring testing force, encoder measuring displacement and electric extensometer measuring specimen's extension. The machine is calibrated according to ISO 75001 and ASTM E4.

2. Main technical parameters

Parameter Model

WAW-300E

WAW-600E

WAW-1000E

WAW-2000E

Max. testing force (kN)

300

600

1000

2000

Accuracy

±0.5% of reading value

Round specimen diameter range (mm)

φ10-φ32

φ10-φ40

φ10-φ55

Φ15-φ70

Flat specimen thickness range (mm)

0-25

0-30

0-40

10-70

Flat specimen width range (mm)

75

90

100

120

Tensile space (mm)

600

740

800

950

Compression space (mm)

530

650

670

750

Clearance between columns (mm)

465

485

515

700

Upper and lower compress plates size (mm)

φ120

φ160

204×204

φ240

Distance of bending by pass roll (mm)

30-400

30-430

30-380

50-430

Max. piston stroke (mm)

200

200

250

250

Power supply

380V±10%, 50Hz, three phase

Work environment

10-40℃, Relative humidity≤80%

Dimension of host machine (mm)

740×620×2058

790×690×2330

880×760×2660

1120×850×3270

Dimension of control cabinet (mm)

1150×870×650

Weight (kg)

1800

2500

3500

5000

3. Photos

Tensile Test with extensometer Bending Test

4. Test report

Packaging & Shipping

The package is Standard Export package-Plywooden case.

We can ship the machines 30 working days after order.

Our Services

Warranty Period is 13 months.

We can provide life-long after-sale service.
