Digital measurement analysis instruments

Digital Measurement Analysis Instruments
  • Seller Kaifeng Kaide Flow Instrument Co., Ltd.
  • Min. Order 1 Set/Sets
  • FOB Price US $230-3000 /Set

Item Details

Port: Qingdao,China
Supply Ability: 3000 Set/Sets per Month
Payment Terms: L/C,T/T,Western Union,MoneyGram

Product Description

Digital measurement analysis instruments

Product Description

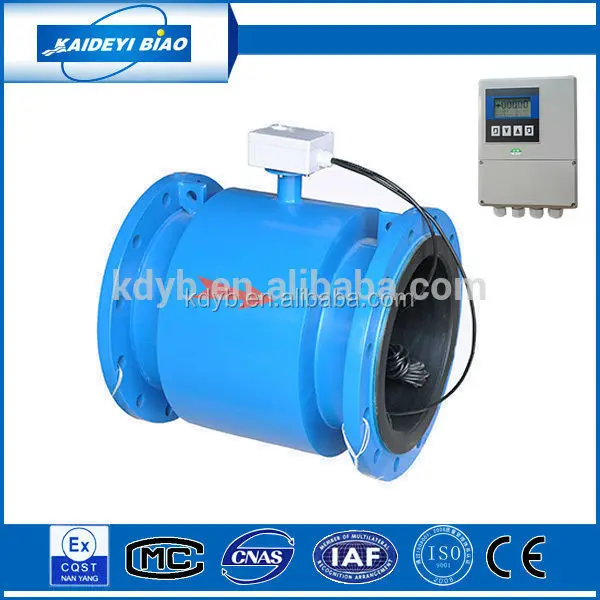

Product Pictures of eletromagnetic flow meter

Product Description of measurement analysis instruments

Electromagnetic flow meter is a kind of induction type flow instrument often used to measure, based on Faraday Law, the volume flowrate of conductive medium in closed pipelines. With microprocessor and exclusive integrated circuit, KDLD electromagnetic flow meter have the advantages of reliable performance, high accuracy, easy to use, etc.. The high speed CPU and advanced signal processing technology ensure a wide measuring range of 0.01m/s to 12m/s. The infrared remote control realize man-machine conversation, two-line LCD makes the readings and parameter setting more comprehensive and convenient.

The Kaide Meter KDLD Series electromagnetic flow meter is intended for fluid metering in most industries including water, wastewater, food and beverage, pharmaceutical and chemical.

The basic components of an electromagnetic flow meter are:

The sensor/ detector, which includes the flow tube, isolating liner and measuring electrodes

The converter/ transmitter, which is the electronic device responsible for the signal processing, flow calculation, display and output signals.

Each meter is factory tested and calibrated A calibration certificate is included with each meter.

Peak flow rate

15m/s

Accuracy

(refer to accuracy curve)

Indication ±0.5%(flow rate no less than 0.8m/s)

Conductibility of fluid

Above 5μ S/cm

Nominal pressure

DN15~ DN150

4.0Mpa

DN15~DN600

1.6Mpa

DN200~DN1000

1.0Mpa

DN200~DN3000

0.6Mpa

Ambient temperature

Sensor

-25~+60 Deg C

Compact flow meter and converter

-10~+60 Deg C

The liner material and maximum temperature of fluid

Liner material

Remote type

Compact type

Polytetrafluoroethylene

(PTFE)

100°C(standard)

150°C(special order)

70°C

Polyvinyl fluoride

(PVF)

100°C(standard)

150°C(special order)

70°C

Fluorinated

ethylene-propylene(FEP)

100°C(standard)

150°C(special order)

70°C

Polychloropree rubber(CR)

80°C(standard)

120°C(special order)

70°C

Polyurethane(PU)

80°C

70°C

Electrode type

Fixed type(DN150~DN2600); Blade type(DN300~DN1600)

Material of signal electrode and grounding electrode

Mo-containing stainless steel, hastelloy B, hastelloy C, tantalum alloy, titanium alloy, platinum-iridium alloy, stainless steel-coated wolfram carbide

Flange material

Carbon steel

Grounding flange material

Stainless steel 1Cr18Ni9Ti

Seal ring material

PTFE

Material of inlet protection flange

DN6~DN600

Stainless steel 1Cr18Ni9Ti

DN700~DN3000

Carbon steel

Shell protection

DN6~DN150 remote sensor with rubber or polyurethane liner

IP65(standard),

IP68(special order)

DN200~DN3000 remote sensor with rubber or polyurethane liner

IP68(able to 5~10m under water usage)

Other sensor and all kinds of converter

IP65

Power supply

24VDC/220VAC

Signal output

Pulse, 4-20mA

Communication

RS485, Modbus(standard), RS232,HART,Profibus, GPRS(special order)

Display

Digital 2-line LCD, able to display positive and negative instantaneous flow and accumulative flow

Spacing (remote type)

Generally, the spacing between converter and sensor is no longer than 100 meters, special order will be required when it is longer than 100 meters.

Production steps of measurement analysis instruments

Characteristics of electromagnetic flow meter
1. Variable forms for different kinds of working conditions. Compact and remote form; Flanged,
flange wafer, clamped, threaded, insertion end connection; DC/AC, battery power supply.
2. High accuracy of ±0.5%.
3. Wide size range of 10mm~3000mm, adapt to different size of pipelines.
4. Full choice of liner to accommodate conductive medium from drinking water to strongly corrosive liquid like sulfuric acid.
5. Measurement is not affected by the density, viscosity, temperature, pressure and electroconductibility of fluid.
6. Two-line LCD, able to display positive and negative instantaneous flow and accumulative flow.
7. No pressure loss. No moving parts.
8. Pulse and 4~20mA standard current output. Multiple choice of communications: RS232, RS485, Modbus, Profibus, HART, etc..
9. Surface mount technology(SMT) technology of converter which possesses self-check and self-diagnose functions.
10. Explosion-proof type can be used at relevant explosion-proof sites. IP68 remote type can be used underwater.

More Products for You to Choose

Company information

Company Information

Why Choose Us

We have been in this business for more than ten years.
Our customer satisfaction is 99. 5%.
We are located in Kaifeng, the most ancient and biggest base of flow instrument in China, which means we have full access to the most advanced technologies in this field.
We are awarded ISO9001:2008.
Our belief is "Accuracy and Attitude, Access to Customer".
Our monthly output of electromagnetic flow meters is 3000 sets.
We are able to provide electromagnetic flow meters with international standards.
Our goal is to make world wide brand.

Packaging & Shipping

Packaging & Shipping

1.Packing:export plywood case packaging,including instructions and certificates

2.Delivery Time:Within1-20 sets electromangetic flow meters,2-7 wording days after payment

3.Shipment:Express(FedEx,DHL,UPS&TNT),by air/ocean or other methods available
