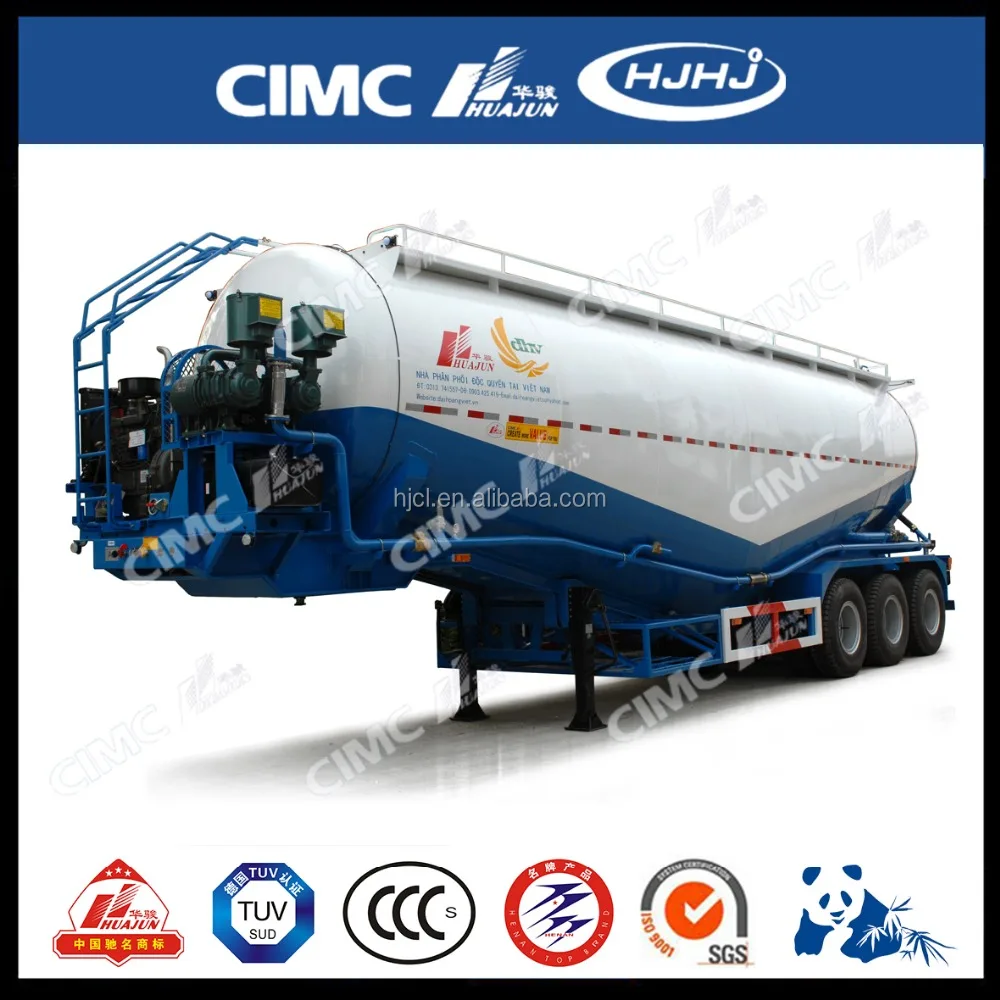

25 70 cubic meters Bulk Cement Transport concrete powder tank trailer

25 70 Cubic Meters Bulk Cement
  • Seller Zhumadian CIMC Huajun Vehicle Co., Ltd.
  • Min. Order 1 Unit/Units
  • FOB Price US $22000-31000 /Unit

Item Details

Port: tianjin, shanghai
Supply Ability: 200 Unit/Units per Month
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,depends on different countries

Product Description

Product Description

Production description:

Type concrete powder tank trailer
MODEL ZCZ9404GFLHJF
Overall Dimensions 11090,10940,10090 * 2500 * 3950(mm)
Landing Leg Setting 2,500 mm
Wheelspan 5350+1310+1310(mm)
Axle Spacing 1310mm
King Pin Setting 1250mm


Tank:

Loading Capacity 40T(69M3)
Tank shell Q235,6mm thickness, and Q345 4mm thickness
Dished ends Q235,6mm thickness
Pipe material Carbon steel
Discharging Hose Diameter 4"
Discharging valve 4" butterfly valve
Discharging Hose Length 7.2m
Hose quick coupling 4" female quick coupling.
Discharging capacity ≥1m3/min
Working pressure 0.2 Mpa
Test pressure 0.3 Mpa
Manhole 3
MAX. Horizontal Discharging Distance 5,000 mm
MAX. Vertical Discharging Distance 15,000 mm


RUNNING GEAR:

Suspension Undermount tri-axle suspension with equalizer;10-Leaf Spring
Axle Square axle,150X150mm.(FUWA 16T capacity)
Brake Dual line pneumatic brake system.
Parking Brake Type 30/30 spring brake system on two axles
Rim 8.5-20,10 holes steel Disc wheel, 12Pcs.
Tire 12.00R20 STEEL RADIUS TYRE, 12 Pcs
King Pin 3.5"
LANDING LEG Two speed manual operation type with sand shoe.


PNEUMATIC SYSTEM:

Electromotor 4102 Made in China, (44Kw, 2000r/Min)
Air Compressor 12m3/min Made in China,Mounted at the front of trailer


ELECTRICAL:

Voltage 24 Volt
Receptacle 7 way
Light Front Marker Lamp : White
Side Marker Lamp Amber
Rear Lamp Red
Turn Signal Lamp Amber


STRUCTURAL WEIGHT RATING:

Tare Weight 81000KG,89000KG
Pay Load 31900KG,31100KG
G.V.W.R.


PAINTING:

Painting As per client's requirement

Note : all the details not mentioned above should comply with Chinese regulations.

Packaging & Shipping

We provide most professional packing and shipping to you to ensure quality and receipt safety!

CKD, SKD are availble!

Our Services

1. Life-long free technical service;

2. Active return visit service;

3. Hotline service within 24hours;

4. Provide guidance and servise in site for VIP;

5. Three guarantees free during warranty period;

OEM Pats to Support Safety!

Company Information

CIMC GROUP

CIMC is short for China International Marine Containers Co., Ltd, established in 1980, which covers container, road transport vehicle, energy and chemical, ocean engineering, logistic service , airport equipment etc. business, most keep world first class for several years.CIMC in Asia, North America, Europe, Austrila, etc. have more than 300 member enterprises and 60000employees, customers and sales network distributed in more than 100 countries and regions in the world.

CIMC HUAJUN

CIMC HUAJUN is a wholly-owned subsidiary of CIMC, who mixed the mission to be customers's partner for modern trasportation. Have over 1000 lines of products on 11 series, including container chassis, flatbed trailer, bulk lorry, tanker, self-dumper, rerfer trailer, van, curtain side trailer, mixer, pump truck, car carier vehicle, fire engine sanitation vehicle, etc. With the annual output capacit of over 50,000 units, as the first brand in China and take the leading position in the world, cooperated with FAW, DONGFENG, SHACMAN, SINOTRUK and exported to Southeast Asia, Africa, Middle East, South America, etc. more than 30 countries.

RELATIONSHIP

With Customers in China

Canton Fair China Import and Export Fair

With Customers around the World

Our Main Products

FAQ

Q1. Are you a manufacturer?

Yes, we have been in special vehicle manufacturing and marketiing for over 20 years.

Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia,Africa, Oceanica, Middle East countries etc.

Q3. What information should I let you know if I want to get a quotation?
Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info. you provide, the more accurate model and price you will get.

Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.

Q5. How can I get the price of your vehicle?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.

Contact Information:
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD.
Huajun Avenue, Yicheng District, Zhumadian, Henan, China
Website:www.hjcl.com
WhatApp/Mobile NO.: +86-15236927291 Angie
